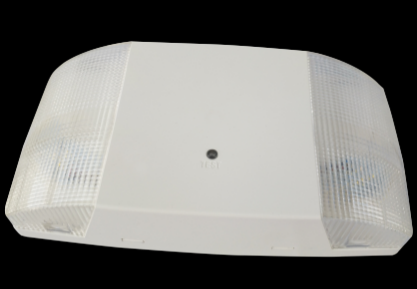

M1

Housing

• Injection-molded thermoplastic housing.

• Plastic enclosure with 5VA flame retardant.

• Compact and decorative design.

• Two fully adjustable glare-free shape light heads for emergency light.

Mounting

• Suitable for wall mount and ceiling mount.

• Top and side knockout for conduit applications.

Electrical

• 120-277VAC 60Hz dual voltage operation.

• 120/277VAC dual voltage optional.

• Brownout protection.

• Over load/short circuit protection.

• Test switch and charge rate indicator.

• 3.6V long-life, maintenance-free, rechargeable Ni-Cad battery.

• LiFePO4 battery for high end version.

• 24hours recharge after discharge, 90minutes discharge.

Options

• Normal model with manual test switch and indicator.

• High end version with self-testing and self-diagnostics.

• RC option with 3.6V1.5W remote capability.

Illumination

• SMD 2835 LED, CCT 5700K, L70 50,000 hours.

• Basic model deliver 200lm at discharge period.

• High lumen model deliver 400lm at discharge.

Certificate

• UL

Warranty

• 5 years warranty for electronic and housing.

• 5 years prorated battery warranty.
