Emergency Light(UL)

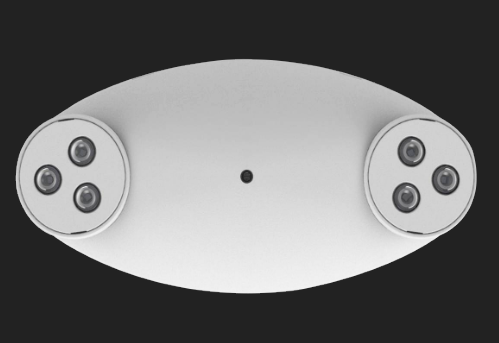

M5

Housing

  • Injection-molded thermoplastic housing.

  • Plastic enclosure with 5VA flame retardant.

  • Compact and decorative design.

  • Two fully adjustable glare-free shape light heads for emergency light.


Mounting

  • Suitable for wall mount and ceiling mount.

  • Top and side knockout for conduit applications.


Electrical

  • 120-277VAC 60Hz dual voltage operation.

  • 120/277VAC dual voltage optional.

  • Brownout protection.

  • Over load/short circuit protection.

  • Test switch and charge rate indicator.

  • 3.6V long-life, maintenance-free, rechargeable Ni-Cad battery.

  • LiFePO4 battery for high end version.

  • 24hours recharge after discharge, 90minutes discharge.


Options

  • Normal model with manual test switch and indicator.

  • High end version with self-testing and self-diagnostics.

  • RC option with 3.6V1.5W remote capability.


Illumination

  • SMD 2835 LED, CCT 5700K, L70 50,000 hours.

  • Basic model deliver 200lm at discharge period.

  • High lumen model deliver 400lm at discharge.


Certificate

  • UL


Warranty

  • 5 years warranty for electronic and housing.

  • 5 years prorated battery warranty.
